1. Make-up and Structural Features of Fused Quartz
1.1 Amorphous Network and Thermal Stability

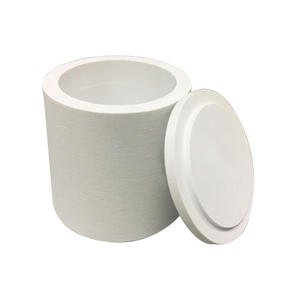

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from integrated silica, an artificial form of silicon dioxide (SiO TWO) stemmed from the melting of natural quartz crystals at temperatures exceeding 1700 ° C.
Unlike crystalline quartz, merged silica possesses an amorphous three-dimensional network of corner-sharing SiO â‚„ tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under fast temperature changes.
This disordered atomic structure avoids cleavage along crystallographic planes, making fused silica much less vulnerable to fracturing throughout thermal biking contrasted to polycrystalline porcelains.
The material displays a low coefficient of thermal expansion (~ 0.5 × 10 â»â¶/ K), among the lowest amongst design materials, enabling it to hold up against severe thermal slopes without fracturing– a crucial home in semiconductor and solar battery production.
Integrated silica likewise keeps superb chemical inertness against many acids, liquified steels, and slags, although it can be slowly engraved by hydrofluoric acid and warm phosphoric acid.
Its high softening factor (~ 1600– 1730 ° C, relying on pureness and OH material) permits continual procedure at elevated temperatures required for crystal development and steel refining processes.
1.2 Pureness Grading and Trace Element Control
The performance of quartz crucibles is very dependent on chemical pureness, specifically the concentration of metallic pollutants such as iron, sodium, potassium, light weight aluminum, and titanium.
Also trace amounts (components per million level) of these contaminants can move right into molten silicon during crystal development, breaking down the electric residential properties of the resulting semiconductor product.
High-purity grades used in electronics manufacturing typically contain over 99.95% SiO â‚‚, with alkali metal oxides restricted to much less than 10 ppm and transition steels listed below 1 ppm.
Pollutants originate from raw quartz feedstock or processing tools and are reduced via mindful selection of mineral resources and purification strategies like acid leaching and flotation.
Furthermore, the hydroxyl (OH) content in fused silica impacts its thermomechanical actions; high-OH types supply better UV transmission however reduced thermal security, while low-OH variants are preferred for high-temperature applications due to decreased bubble formation.

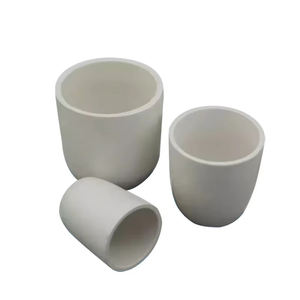

( Quartz Crucibles)
2. Production Refine and Microstructural Design
2.1 Electrofusion and Creating Techniques
Quartz crucibles are mainly produced through electrofusion, a procedure in which high-purity quartz powder is fed right into a rotating graphite mold and mildew within an electrical arc heating system.
An electric arc created between carbon electrodes melts the quartz bits, which strengthen layer by layer to form a smooth, dense crucible form.
This approach generates a fine-grained, uniform microstructure with marginal bubbles and striae, essential for uniform heat circulation and mechanical stability.
Different methods such as plasma combination and flame combination are made use of for specialized applications requiring ultra-low contamination or specific wall thickness accounts.
After casting, the crucibles go through controlled air conditioning (annealing) to soothe inner tensions and avoid spontaneous cracking during solution.
Surface completing, consisting of grinding and brightening, ensures dimensional accuracy and lowers nucleation sites for unwanted crystallization throughout use.
2.2 Crystalline Layer Design and Opacity Control
A defining attribute of contemporary quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
Throughout production, the internal surface area is usually treated to promote the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon initial heating.
This cristobalite layer functions as a diffusion obstacle, lowering direct communication between liquified silicon and the underlying merged silica, thereby lessening oxygen and metallic contamination.
Furthermore, the visibility of this crystalline stage improves opacity, enhancing infrared radiation absorption and promoting even more consistent temperature distribution within the thaw.
Crucible developers carefully balance the thickness and connection of this layer to prevent spalling or fracturing because of quantity modifications throughout phase shifts.
3. Useful Performance in High-Temperature Applications
3.1 Duty in Silicon Crystal Development Processes
Quartz crucibles are indispensable in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the key container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into molten silicon kept in a quartz crucible and gradually pulled up while revolving, allowing single-crystal ingots to develop.
Although the crucible does not straight get in touch with the expanding crystal, communications in between molten silicon and SiO â‚‚ wall surfaces bring about oxygen dissolution right into the melt, which can influence service provider life time and mechanical toughness in ended up wafers.
In DS processes for photovoltaic-grade silicon, massive quartz crucibles enable the controlled cooling of thousands of kilograms of liquified silicon right into block-shaped ingots.
Right here, finishes such as silicon nitride (Si six N FOUR) are applied to the internal surface area to stop bond and help with simple release of the strengthened silicon block after cooling down.
3.2 Destruction Mechanisms and Life Span Limitations
Regardless of their robustness, quartz crucibles break down throughout duplicated high-temperature cycles because of numerous related mechanisms.
Viscous flow or deformation occurs at extended exposure above 1400 ° C, causing wall surface thinning and loss of geometric integrity.
Re-crystallization of fused silica right into cristobalite produces interior stress and anxieties as a result of volume growth, potentially creating splits or spallation that contaminate the thaw.
Chemical disintegration arises from decrease reactions in between molten silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), creating unpredictable silicon monoxide that escapes and damages the crucible wall.
Bubble development, driven by entraped gases or OH groups, additionally endangers architectural toughness and thermal conductivity.
These deterioration paths limit the number of reuse cycles and necessitate accurate process control to make the most of crucible lifespan and product return.
4. Arising Advancements and Technological Adaptations
4.1 Coatings and Composite Alterations
To enhance performance and longevity, advanced quartz crucibles include functional coverings and composite frameworks.
Silicon-based anti-sticking layers and doped silica finishings boost release characteristics and lower oxygen outgassing during melting.
Some suppliers integrate zirconia (ZrO â‚‚) bits into the crucible wall surface to enhance mechanical toughness and resistance to devitrification.
Research is recurring right into completely clear or gradient-structured crucibles made to enhance radiant heat transfer in next-generation solar heater layouts.
4.2 Sustainability and Recycling Challenges
With increasing demand from the semiconductor and photovoltaic or pv markets, sustainable use of quartz crucibles has come to be a concern.
Spent crucibles infected with silicon deposit are difficult to recycle as a result of cross-contamination threats, resulting in considerable waste generation.
Efforts concentrate on developing recyclable crucible linings, boosted cleansing protocols, and closed-loop recycling systems to recover high-purity silica for second applications.
As tool effectiveness demand ever-higher product pureness, the function of quartz crucibles will certainly remain to progress through advancement in materials scientific research and procedure engineering.
In summary, quartz crucibles stand for an important user interface between raw materials and high-performance digital products.
Their one-of-a-kind mix of pureness, thermal strength, and architectural layout enables the fabrication of silicon-based technologies that power modern computer and renewable resource systems.
