1. Composition and Architectural Characteristics of Fused Quartz
1.1 Amorphous Network and Thermal Stability

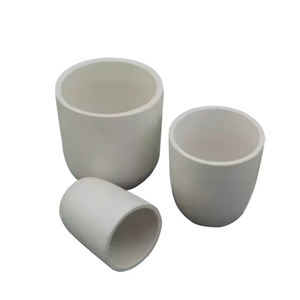

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from integrated silica, an artificial form of silicon dioxide (SiO TWO) originated from the melting of all-natural quartz crystals at temperatures going beyond 1700 ° C.
Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO â‚„ tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under quick temperature modifications.
This disordered atomic structure avoids bosom along crystallographic airplanes, making merged silica much less vulnerable to cracking throughout thermal cycling compared to polycrystalline porcelains.
The product shows a low coefficient of thermal growth (~ 0.5 × 10 â»â¶/ K), one of the most affordable amongst design products, enabling it to withstand extreme thermal slopes without fracturing– a crucial home in semiconductor and solar battery production.
Fused silica additionally keeps outstanding chemical inertness versus a lot of acids, liquified steels, and slags, although it can be slowly engraved by hydrofluoric acid and hot phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending upon purity and OH content) enables sustained operation at raised temperatures needed for crystal growth and metal refining processes.
1.2 Purity Grading and Trace Element Control
The performance of quartz crucibles is extremely depending on chemical purity, especially the concentration of metal contaminations such as iron, salt, potassium, light weight aluminum, and titanium.
Even trace amounts (parts per million level) of these pollutants can move into molten silicon during crystal development, degrading the electrical homes of the resulting semiconductor product.
High-purity qualities made use of in electronics manufacturing typically contain over 99.95% SiO TWO, with alkali steel oxides restricted to less than 10 ppm and change metals below 1 ppm.
Pollutants originate from raw quartz feedstock or handling tools and are lessened via cautious selection of mineral sources and filtration techniques like acid leaching and flotation.
Furthermore, the hydroxyl (OH) content in integrated silica influences its thermomechanical actions; high-OH types offer better UV transmission yet lower thermal security, while low-OH variants are preferred for high-temperature applications because of decreased bubble formation.

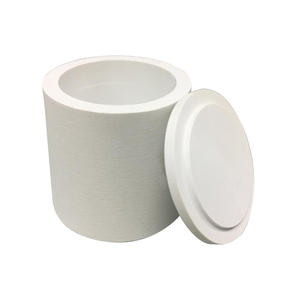

( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Style
2.1 Electrofusion and Developing Methods
Quartz crucibles are primarily produced by means of electrofusion, a procedure in which high-purity quartz powder is fed right into a turning graphite mold within an electric arc heater.
An electric arc produced between carbon electrodes melts the quartz fragments, which strengthen layer by layer to form a seamless, thick crucible shape.
This method generates a fine-grained, uniform microstructure with minimal bubbles and striae, necessary for uniform warmth distribution and mechanical honesty.
Alternate techniques such as plasma blend and fire combination are made use of for specialized applications needing ultra-low contamination or certain wall thickness profiles.
After casting, the crucibles go through regulated air conditioning (annealing) to relieve internal stresses and protect against spontaneous breaking throughout service.
Surface area ending up, including grinding and polishing, makes sure dimensional precision and decreases nucleation sites for unwanted formation throughout use.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying function of contemporary quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
Throughout production, the internal surface is often treated to advertise the development of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO â‚‚– upon very first home heating.
This cristobalite layer works as a diffusion barrier, decreasing direct communication in between molten silicon and the underlying fused silica, thus reducing oxygen and metal contamination.
Furthermore, the presence of this crystalline phase enhances opacity, boosting infrared radiation absorption and promoting even more consistent temperature level circulation within the melt.
Crucible designers meticulously balance the density and connection of this layer to prevent spalling or breaking as a result of volume changes during phase transitions.
3. Useful Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Development Processes
Quartz crucibles are crucial in the manufacturing of monocrystalline and multicrystalline silicon, serving as the main container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped into molten silicon kept in a quartz crucible and slowly drew up while revolving, allowing single-crystal ingots to create.
Although the crucible does not straight contact the expanding crystal, interactions between molten silicon and SiO two walls cause oxygen dissolution right into the thaw, which can affect service provider lifetime and mechanical strength in completed wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles enable the controlled air conditioning of thousands of kilos of molten silicon into block-shaped ingots.
Right here, finishings such as silicon nitride (Si two N FOUR) are put on the internal surface area to stop adhesion and promote simple release of the solidified silicon block after cooling down.
3.2 Destruction Devices and Life Span Limitations
Despite their toughness, quartz crucibles break down during repeated high-temperature cycles due to numerous interrelated devices.
Viscous flow or deformation takes place at long term direct exposure over 1400 ° C, bring about wall thinning and loss of geometric honesty.
Re-crystallization of fused silica right into cristobalite produces inner tensions due to quantity growth, potentially creating fractures or spallation that contaminate the thaw.
Chemical disintegration occurs from reduction reactions between liquified silicon and SiO ₂: SiO TWO + Si → 2SiO(g), producing volatile silicon monoxide that leaves and damages the crucible wall.
Bubble development, driven by trapped gases or OH teams, even more endangers structural toughness and thermal conductivity.
These degradation pathways limit the variety of reuse cycles and require accurate process control to optimize crucible life-span and product yield.
4. Arising Innovations and Technical Adaptations
4.1 Coatings and Compound Adjustments
To improve efficiency and durability, progressed quartz crucibles incorporate useful coatings and composite frameworks.
Silicon-based anti-sticking layers and doped silica coverings improve launch qualities and decrease oxygen outgassing throughout melting.
Some makers integrate zirconia (ZrO TWO) fragments right into the crucible wall to raise mechanical stamina and resistance to devitrification.
Study is continuous into completely clear or gradient-structured crucibles designed to optimize convected heat transfer in next-generation solar heating system styles.
4.2 Sustainability and Recycling Challenges
With enhancing need from the semiconductor and photovoltaic markets, sustainable use of quartz crucibles has become a concern.
Used crucibles polluted with silicon residue are difficult to reuse as a result of cross-contamination threats, resulting in significant waste generation.
Initiatives focus on creating reusable crucible linings, improved cleaning protocols, and closed-loop recycling systems to recover high-purity silica for additional applications.
As device performances demand ever-higher product purity, the function of quartz crucibles will continue to progress through innovation in products science and process engineering.
In recap, quartz crucibles stand for a crucial user interface between basic materials and high-performance digital items.
Their distinct mix of pureness, thermal resilience, and structural layout makes it possible for the fabrication of silicon-based modern technologies that power contemporary computing and renewable resource systems.
