1. Crystal Structure and Split Anisotropy
1.1 The 2H and 1T Polymorphs: Structural and Digital Duality

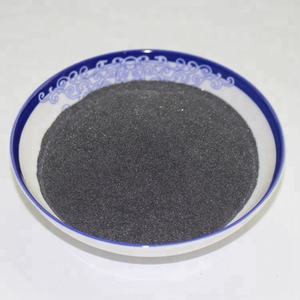

(Molybdenum Disulfide)
Molybdenum disulfide (MoS â‚‚) is a layered change steel dichalcogenide (TMD) with a chemical formula consisting of one molybdenum atom sandwiched between 2 sulfur atoms in a trigonal prismatic coordination, developing covalently bonded S– Mo– S sheets.
These specific monolayers are piled up and down and held together by weak van der Waals forces, making it possible for very easy interlayer shear and exfoliation down to atomically slim two-dimensional (2D) crystals– a structural function main to its varied useful functions.
MoS â‚‚ exists in numerous polymorphic kinds, the most thermodynamically stable being the semiconducting 2H phase (hexagonal balance), where each layer exhibits a direct bandgap of ~ 1.8 eV in monolayer kind that transitions to an indirect bandgap (~ 1.3 eV) in bulk, a sensation essential for optoelectronic applications.
In contrast, the metastable 1T phase (tetragonal balance) embraces an octahedral control and behaves as a metallic conductor because of electron contribution from the sulfur atoms, allowing applications in electrocatalysis and conductive compounds.
Phase transitions in between 2H and 1T can be induced chemically, electrochemically, or with pressure design, supplying a tunable system for making multifunctional tools.
The capability to maintain and pattern these phases spatially within a solitary flake opens up paths for in-plane heterostructures with distinctive electronic domain names.
1.2 Issues, Doping, and Side States
The efficiency of MoS â‚‚ in catalytic and electronic applications is highly conscious atomic-scale issues and dopants.
Inherent factor flaws such as sulfur jobs serve as electron contributors, raising n-type conductivity and working as energetic sites for hydrogen advancement responses (HER) in water splitting.
Grain borders and line issues can either hinder fee transport or develop local conductive pathways, relying on their atomic setup.
Controlled doping with change metals (e.g., Re, Nb) or chalcogens (e.g., Se) allows fine-tuning of the band framework, service provider focus, and spin-orbit combining impacts.
Significantly, the edges of MoS two nanosheets, especially the metallic Mo-terminated (10– 10) sides, exhibit substantially higher catalytic activity than the inert basic aircraft, motivating the style of nanostructured drivers with made best use of side exposure.
( Molybdenum Disulfide)
These defect-engineered systems exemplify exactly how atomic-level adjustment can transform a naturally happening mineral right into a high-performance useful material.
2. Synthesis and Nanofabrication Techniques
2.1 Mass and Thin-Film Production Methods
All-natural molybdenite, the mineral type of MoS TWO, has actually been made use of for years as a solid lubricant, however modern-day applications require high-purity, structurally regulated synthetic types.
Chemical vapor deposition (CVD) is the leading technique for generating large-area, high-crystallinity monolayer and few-layer MoS â‚‚ movies on substratums such as SiO â‚‚/ Si, sapphire, or adaptable polymers.
In CVD, molybdenum and sulfur precursors (e.g., MoO ₃ and S powder) are vaporized at high temperatures (700– 1000 ° C )under controlled ambiences, making it possible for layer-by-layer development with tunable domain name size and positioning.
Mechanical peeling (“scotch tape approach”) continues to be a criteria for research-grade examples, generating ultra-clean monolayers with minimal flaws, though it lacks scalability.
Liquid-phase exfoliation, entailing sonication or shear blending of bulk crystals in solvents or surfactant options, generates colloidal dispersions of few-layer nanosheets suitable for finishes, compounds, and ink formulations.
2.2 Heterostructure Integration and Device Pattern
The true potential of MoS â‚‚ arises when integrated right into upright or side heterostructures with various other 2D materials such as graphene, hexagonal boron nitride (h-BN), or WSe â‚‚.
These van der Waals heterostructures allow the design of atomically specific tools, including tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer charge and energy transfer can be crafted.
Lithographic pattern and etching techniques enable the manufacture of nanoribbons, quantum dots, and field-effect transistors (FETs) with network lengths down to tens of nanometers.
Dielectric encapsulation with h-BN secures MoS â‚‚ from ecological destruction and reduces fee spreading, considerably improving provider wheelchair and tool stability.
These manufacture advances are necessary for transitioning MoS â‚‚ from research laboratory interest to practical component in next-generation nanoelectronics.
3. Useful Properties and Physical Mechanisms
3.1 Tribological Habits and Strong Lubrication
Among the oldest and most long-lasting applications of MoS two is as a completely dry solid lubricating substance in extreme settings where fluid oils fall short– such as vacuum, heats, or cryogenic conditions.
The low interlayer shear stamina of the van der Waals gap enables simple sliding between S– Mo– S layers, resulting in a coefficient of rubbing as reduced as 0.03– 0.06 under optimum conditions.
Its performance is additionally improved by solid adhesion to steel surface areas and resistance to oxidation approximately ~ 350 ° C in air, past which MoO two formation enhances wear.
MoS two is widely utilized in aerospace systems, air pump, and weapon components, often applied as a covering using burnishing, sputtering, or composite incorporation into polymer matrices.
Recent researches show that moisture can deteriorate lubricity by increasing interlayer attachment, prompting research into hydrophobic finishings or hybrid lubricants for improved ecological stability.
3.2 Electronic and Optoelectronic Feedback
As a direct-gap semiconductor in monolayer type, MoS â‚‚ exhibits strong light-matter communication, with absorption coefficients exceeding 10 five cm â»Â¹ and high quantum yield in photoluminescence.
This makes it perfect for ultrathin photodetectors with rapid action times and broadband level of sensitivity, from noticeable to near-infrared wavelengths.
Field-effect transistors based upon monolayer MoS â‚‚ show on/off ratios > 10 eight and provider wheelchairs as much as 500 cm ²/ V · s in suspended examples, though substrate communications commonly limit useful values to 1– 20 centimeters ²/ V · s.
Spin-valley combining, an effect of strong spin-orbit interaction and damaged inversion balance, enables valleytronics– a novel standard for info encoding making use of the valley degree of flexibility in momentum area.
These quantum phenomena setting MoS â‚‚ as a candidate for low-power reasoning, memory, and quantum computer aspects.
4. Applications in Energy, Catalysis, and Arising Technologies
4.1 Electrocatalysis for Hydrogen Evolution Response (HER)
MoS â‚‚ has become a promising non-precious alternative to platinum in the hydrogen development reaction (HER), a vital procedure in water electrolysis for eco-friendly hydrogen manufacturing.
While the basal plane is catalytically inert, side sites and sulfur openings show near-optimal hydrogen adsorption complimentary energy (ΔG_H * ≈ 0), equivalent to Pt.
Nanostructuring techniques– such as developing up and down aligned nanosheets, defect-rich films, or doped hybrids with Ni or Co– maximize energetic site density and electric conductivity.
When integrated right into electrodes with conductive sustains like carbon nanotubes or graphene, MoS two accomplishes high existing thickness and lasting security under acidic or neutral conditions.
Additional enhancement is accomplished by supporting the metal 1T stage, which improves inherent conductivity and exposes extra active sites.
4.2 Flexible Electronics, Sensors, and Quantum Tools
The mechanical flexibility, transparency, and high surface-to-volume ratio of MoS â‚‚ make it excellent for versatile and wearable electronic devices.
Transistors, reasoning circuits, and memory tools have been shown on plastic substratums, making it possible for bendable screens, wellness monitors, and IoT sensing units.
MoS â‚‚-based gas sensing units display high sensitivity to NO â‚‚, NH SIX, and H â‚‚ O because of bill transfer upon molecular adsorption, with action times in the sub-second range.
In quantum modern technologies, MoS two hosts local excitons and trions at cryogenic temperatures, and strain-induced pseudomagnetic fields can catch service providers, making it possible for single-photon emitters and quantum dots.
These advancements highlight MoS â‚‚ not just as a practical material but as a system for discovering essential physics in minimized dimensions.
In recap, molybdenum disulfide exhibits the merging of classic products scientific research and quantum design.
From its ancient duty as a lubricant to its modern-day deployment in atomically thin electronic devices and power systems, MoS two continues to redefine the boundaries of what is possible in nanoscale materials design.
As synthesis, characterization, and assimilation techniques advance, its effect across science and technology is poised to increase also better.
