Alumina Ceramic Tubes: High-Performance Inorganic Conduits for Extreme Environment Applications boron ceramic

1. Product Qualities and Architectural Style

1.1 Structure and Crystalline Phases of Alumina

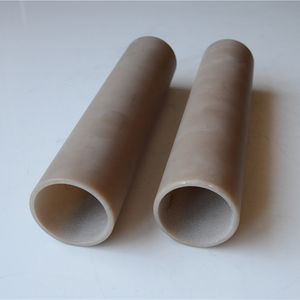

( Alumina Ceramic Tubes)

Alumina (Al ₂ O THREE) ceramic tubes are mainly produced from high-purity aluminum oxide, with purity degrees normally ranging from 90% to 99.8%, depending on the intended application.

The leading crystalline phase in fully thick, high-temperature sintered tubes is α-alumina (diamond), which displays a trigonal crystal structure and extraordinary thermodynamic security.

This phase change from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina happens over 1100 ° C and causes a thick, interlacing microstructure that provides impressive mechanical stamina and chemical resistance.

Higher pureness grades (≥ 99.5%) optimize firmness, use resistance, and dielectric efficiency, while lower-purity formulations may integrate additional stages like mullite or glassy grain border stages to minimize expense or tailor thermal expansion.

The ability to regulate grain dimension, porosity, and stage composition throughout processing allows engineers to fine-tune alumina tubes for certain functional demands throughout varied industrial domains.

1.2 Mechanical, Thermal, and Electrical Quality

Alumina ceramic tubes exhibit a special mix of physical residential properties that make them vital popular engineering atmospheres.

With a Vickers firmness going beyond 1500 HV, they are very immune to abrasion and erosion, exceeding most steels and polymers in wear-prone systems.

Their compressive toughness can reach 2000 MPa, allowing structural usage under high mechanical lots, while flexural stamina commonly varies from 300 to 500 MPa, depending upon density and surface coating.

Thermally, alumina preserves security approximately 1700 ° C in oxidizing ambiences, with a low coefficient of thermal expansion (~ 8 ppm/K), contributing to exceptional thermal shock resistance when properly developed.

Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to metals or light weight aluminum nitride, it suffices for many high-temperature applications where electric insulation and structural integrity are prioritized.

Electrically, alumina is an outstanding insulator with quantity resistivity > 10 ¹⁴ Ω · cm and high dielectric strength (> 15 kV/mm), making it optimal for electric feedthroughs, sensor housings, and high-voltage insulation.

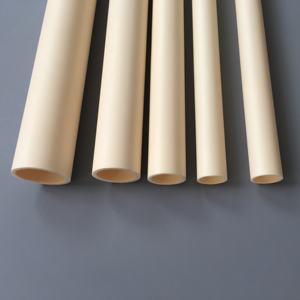

( Alumina Ceramic Tubes)

2. Manufacturing Processes and Dimensional Control

2.1 Shaping and Developing Techniques

The manufacturing of alumina ceramic tubes includes innovative forming methods customized to attain exact measurements, wall density harmony, and surface area quality.

Typical techniques consist of extrusion, isostatic pushing, and slide spreading, each suited to different size arrays and efficiency requirements.

Extrusion is extensively made use of for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is required through a die and cut to size prior to drying and sintering.

For high-precision or thin-walled tubes, cool isostatic pressing (CIP) uses uniform pressure from all directions to compact eco-friendly bodies, lessening distortion and improving density homogeneity.

Slip spreading, involving the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold, is suitable for complex or large-diameter geometries with variable wall surface thickness.

After creating, tubes undertake mindful drying out to avoid breaking, followed by binder fatigue and high-temperature sintering (1500– 1650 ° C )to achieve complete densification and dimensional stability.

2.2 Completing and Quality Control

Post-sintering operations such as centerless grinding, washing, and polishing are used to achieve limited resistances, smooth surface finishes, and specific internal and external sizes.

Tolerances as limited as ± 0.01 mm are attainable for essential applications in semiconductor handling or analytical instrumentation.

Surface area roughness can be decreased to Ra < 0.1 µm, minimizing fragment capturing and improving compatibility with ultra-high vacuum cleaner (UHV) or cleanroom settings.

Non-destructive testing approaches– including ultrasonic evaluation, X-ray radiography, and color penetrant screening– ensure architectural integrity and lack of splits or gaps.

Dimensional width utilizing coordinate determining machines (CMM) or laser scanning validates compliance with style specifications, especially for custom or high-volume manufacturing runs.

3. Practical Efficiency in Harsh Environments

3.1 Resistance to Thermal and Chemical Deterioration

Among the most compelling advantages of alumina ceramic tubes is their capability to withstand extreme thermal and chemical conditions where metals and polymers fall short.

They continue to be dimensionally steady and mechanically robust in continual solution at temperature levels over 1500 ° C, making them ideal for heating system liners, thermocouple defense sheaths, and radiant heater tubes.

Their inertness to molten metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and many acids (except hydrofluoric and hot phosphoric acid) allows use in metallurgical and chemical processing devices.

In oxidizing and decreasing ambiences, alumina does not degrade or catalyze undesirable reactions, protecting procedure purity in semiconductor and glass production.

This chemical inertness likewise stops contamination in high-purity liquid managing systems, consisting of those made use of in pharmaceutical and food processing markets.

3.2 Electric Insulation and Plasma Resistance

In electrical and plasma environments, alumina tubes work as protecting obstacles that maintain circuit stability under high voltage and elevated temperature level.

They are utilized in high-intensity discharge (HID) lamps, where they consist of ionized gases at temperatures going beyond 1000 ° C while standing up to electrical potentials of numerous kilovolts.

In plasma etching and deposition systems, alumina tubes work as dielectric home windows or gas circulation elements, standing up to ion barrage and thermal cycling without breaking or outgassing.

Their low dielectric loss and high arc resistance prevent electrical monitoring and malfunction, guaranteeing lengthy life span in switchgear and power transmission parts.

These residential or commercial properties are important in maintaining process security and devices reliability in advanced manufacturing and power systems.

4. Industrial and Emerging Applications

4.1 High-Temperature and Industrial Processing Solutions

Alumina ceramic tubes are important to a variety of commercial procedures that require resilience under extreme conditions.

In thermal handling, they act as protective sheaths for thermocouples and burner in kilns, furnaces, and warm therapy equipment, securing delicate parts from harsh environments and mechanical wear.

In fluid handling, they transport hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.

Their resistance to thermal shock permits fast heating and cooling down cycles without failure, an essential benefit in cyclic industrial procedures.

In glass production, alumina tubes guide molten glass circulations and support forming devices, resisting erosion from viscous, high-temperature melts.

4.2 Advanced Technologies and Future Combination

Beyond typical commercial uses, alumina tubes are discovering new duties in cutting-edge modern technologies.

In semiconductor manufacture, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metal contamination must be lessened.

In clinical gadgets, biocompatible alumina tubes act as protecting parts in medical tools, oral implants, and analysis sensors.

Research is checking out functionalized alumina tubes with ingrained sensors or conductive traces for smart structural tracking in aerospace and energy systems.

Additive manufacturing (3D printing) of alumina is emerging as a method to produce intricate tube geometries with interior networks or rated compositions, making it possible for next-generation warm exchangers and microreactors.

As markets push towards greater efficiency, cleaner procedures, and better reliability, alumina ceramic tubes remain to progress as enabling components in the infrastructure of contemporary technology.

In recap, alumina ceramic tubes represent a mature yet dynamically advancing course of engineered materials, combining remarkable thermal, mechanical, and electric efficiency in a single not natural conduit.

Their versatility across extreme atmospheres ensures their continued significance in both developed commercial systems and arising state-of-the-art applications.
