1. Product Qualities and Structural Stability
1.1 Intrinsic Characteristics of Silicon Carbide

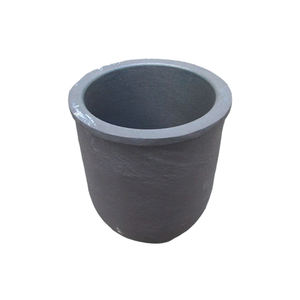

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms set up in a tetrahedral lattice structure, mainly existing in over 250 polytypic types, with 6H, 4H, and 3C being the most highly relevant.
Its strong directional bonding imparts phenomenal solidity (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure solitary crystals), and impressive chemical inertness, making it among one of the most robust products for extreme atmospheres.
The wide bandgap (2.9– 3.3 eV) makes certain excellent electric insulation at area temperature and high resistance to radiation damages, while its reduced thermal expansion coefficient (~ 4.0 × 10 â»â¶/ K) contributes to superior thermal shock resistance.
These innate buildings are preserved also at temperatures surpassing 1600 ° C, permitting SiC to preserve architectural integrity under extended exposure to thaw steels, slags, and responsive gases.
Unlike oxide ceramics such as alumina, SiC does not respond readily with carbon or kind low-melting eutectics in decreasing environments, a crucial advantage in metallurgical and semiconductor processing.
When fabricated into crucibles– vessels developed to have and warmth materials– SiC outshines typical products like quartz, graphite, and alumina in both lifespan and procedure integrity.
1.2 Microstructure and Mechanical Stability
The efficiency of SiC crucibles is closely tied to their microstructure, which depends upon the manufacturing approach and sintering ingredients utilized.
Refractory-grade crucibles are generally produced using response bonding, where porous carbon preforms are infiltrated with molten silicon, developing β-SiC with the reaction Si(l) + C(s) → SiC(s).
This procedure produces a composite structure of key SiC with recurring complimentary silicon (5– 10%), which boosts thermal conductivity however might limit usage over 1414 ° C(the melting factor of silicon).
Conversely, completely sintered SiC crucibles are made with solid-state or liquid-phase sintering using boron and carbon or alumina-yttria ingredients, attaining near-theoretical thickness and greater purity.
These display exceptional creep resistance and oxidation stability but are a lot more expensive and difficult to make in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlacing microstructure of sintered SiC provides exceptional resistance to thermal tiredness and mechanical erosion, crucial when taking care of molten silicon, germanium, or III-V substances in crystal growth processes.
Grain limit design, including the control of second stages and porosity, plays a crucial function in identifying long-lasting toughness under cyclic heating and aggressive chemical settings.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Heat Circulation
One of the specifying benefits of SiC crucibles is their high thermal conductivity, which makes it possible for fast and uniform warm transfer throughout high-temperature handling.
Unlike low-conductivity products like merged silica (1– 2 W/(m · K)), SiC efficiently disperses thermal energy throughout the crucible wall, reducing localized locations and thermal slopes.
This uniformity is necessary in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity straight affects crystal quality and problem thickness.
The mix of high conductivity and reduced thermal development results in an extremely high thermal shock parameter (R = k(1 − ν)α/ σ), making SiC crucibles resistant to breaking during rapid home heating or cooling cycles.
This enables faster heater ramp prices, boosted throughput, and decreased downtime because of crucible failure.
In addition, the material’s ability to hold up against repeated thermal cycling without significant destruction makes it excellent for set handling in commercial heating systems running over 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At raised temperature levels in air, SiC undertakes easy oxidation, developing a safety layer of amorphous silica (SiO TWO) on its surface: SiC + 3/2 O TWO → SiO TWO + CO.
This lustrous layer densifies at high temperatures, working as a diffusion barrier that slows down more oxidation and protects the underlying ceramic structure.
Nevertheless, in lowering atmospheres or vacuum problems– common in semiconductor and steel refining– oxidation is subdued, and SiC continues to be chemically secure against liquified silicon, aluminum, and several slags.
It stands up to dissolution and response with liquified silicon approximately 1410 ° C, although prolonged direct exposure can lead to mild carbon pickup or user interface roughening.
Most importantly, SiC does not present metallic contaminations right into sensitive thaws, a crucial need for electronic-grade silicon production where contamination by Fe, Cu, or Cr needs to be maintained below ppb degrees.
Nevertheless, treatment should be taken when processing alkaline earth steels or very reactive oxides, as some can corrode SiC at severe temperatures.
3. Manufacturing Processes and Quality Assurance
3.1 Manufacture Strategies and Dimensional Control
The production of SiC crucibles includes shaping, drying out, and high-temperature sintering or infiltration, with approaches selected based on needed pureness, size, and application.
Usual forming methods consist of isostatic pressing, extrusion, and slip casting, each supplying various degrees of dimensional precision and microstructural harmony.
For huge crucibles made use of in photovoltaic ingot spreading, isostatic pressing guarantees consistent wall density and thickness, reducing the threat of crooked thermal growth and failing.
Reaction-bonded SiC (RBSC) crucibles are affordable and commonly used in factories and solar markets, though residual silicon restrictions maximum service temperature.
Sintered SiC (SSiC) variations, while a lot more costly, offer exceptional pureness, toughness, and resistance to chemical strike, making them appropriate for high-value applications like GaAs or InP crystal growth.
Precision machining after sintering might be called for to achieve limited resistances, specifically for crucibles used in upright gradient freeze (VGF) or Czochralski (CZ) systems.
Surface area finishing is important to minimize nucleation sites for problems and make certain smooth thaw flow throughout casting.
3.2 Quality Control and Efficiency Validation
Extensive quality control is important to make sure dependability and longevity of SiC crucibles under demanding operational conditions.
Non-destructive assessment techniques such as ultrasonic testing and X-ray tomography are utilized to spot inner cracks, voids, or thickness variations.
Chemical analysis by means of XRF or ICP-MS confirms low degrees of metal pollutants, while thermal conductivity and flexural toughness are gauged to confirm material uniformity.
Crucibles are frequently subjected to substitute thermal cycling examinations before shipment to recognize possible failing modes.
Set traceability and certification are common in semiconductor and aerospace supply chains, where part failing can bring about expensive manufacturing losses.
4. Applications and Technical Influence
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a crucial role in the manufacturing of high-purity silicon for both microelectronics and solar batteries.
In directional solidification furnaces for multicrystalline solar ingots, huge SiC crucibles work as the main container for liquified silicon, withstanding temperatures above 1500 ° C for several cycles.
Their chemical inertness avoids contamination, while their thermal security makes sure consistent solidification fronts, bring about higher-quality wafers with less dislocations and grain limits.
Some manufacturers layer the inner surface area with silicon nitride or silica to even more reduce attachment and promote ingot launch after cooling.
In research-scale Czochralski growth of substance semiconductors, smaller SiC crucibles are utilized to hold thaws of GaAs, InSb, or CdTe, where marginal reactivity and dimensional stability are extremely important.
4.2 Metallurgy, Factory, and Emerging Technologies
Beyond semiconductors, SiC crucibles are crucial in steel refining, alloy prep work, and laboratory-scale melting operations entailing aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and disintegration makes them perfect for induction and resistance heaters in shops, where they last longer than graphite and alumina options by several cycles.
In additive production of responsive steels, SiC containers are made use of in vacuum induction melting to prevent crucible failure and contamination.
Emerging applications consist of molten salt reactors and focused solar power systems, where SiC vessels may have high-temperature salts or fluid metals for thermal power storage.
With continuous advances in sintering innovation and layer design, SiC crucibles are positioned to support next-generation products processing, enabling cleaner, a lot more effective, and scalable industrial thermal systems.
In recap, silicon carbide crucibles stand for an important enabling modern technology in high-temperature material synthesis, incorporating phenomenal thermal, mechanical, and chemical efficiency in a solitary engineered part.
Their widespread adoption throughout semiconductor, solar, and metallurgical sectors underscores their role as a foundation of modern industrial porcelains.
