1. Material Scientific Research and Structural Quality
1.1 Crystal Framework and Chemical Security

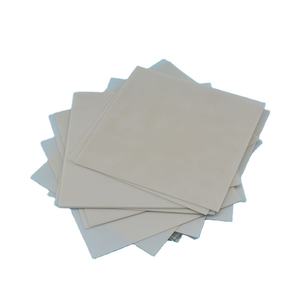

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of light weight aluminum and nitrogen atoms bonded via strong covalent communications.
This durable atomic arrangement endows AlN with outstanding thermal stability, maintaining structural integrity as much as 2200 ° C in inert atmospheres and resisting decomposition under extreme thermal cycling.
Unlike alumina (Al two O FOUR), AlN is chemically inert to thaw metals and numerous responsive gases, making it suitable for harsh settings such as semiconductor processing chambers and high-temperature furnaces.
Its high resistance to oxidation– developing just a slim protective Al â‚‚ O two layer at surface area upon exposure to air– makes sure lasting dependability without substantial destruction of mass residential properties.
Moreover, AlN shows excellent electric insulation with a resistivity going beyond 10 ¹ⴠΩ · cm and a dielectric toughness over 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Digital Qualities
The most defining attribute of light weight aluminum nitride is its outstanding thermal conductivity, usually ranging from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times more than that of alumina (≈ 30 W/(m · K)).
This performance originates from the reduced atomic mass of nitrogen and aluminum, combined with strong bonding and very little factor flaws, which permit reliable phonon transport through the latticework.
However, oxygen contaminations are especially detrimental; even trace quantities (above 100 ppm) replacement for nitrogen sites, producing aluminum openings and spreading phonons, thereby drastically minimizing thermal conductivity.
High-purity AlN powders synthesized through carbothermal decrease or direct nitridation are necessary to attain ideal heat dissipation.
Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric residential properties make it valuable in sensors and acoustic wave gadgets, while its wide bandgap (~ 6.2 eV) supports operation in high-power and high-frequency electronic systems.
2. Fabrication Processes and Manufacturing Obstacles

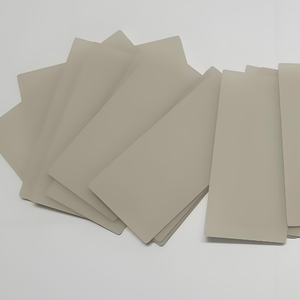

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Making high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, generally accomplished with responses such as Al Two O SIX + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or direct nitridation of aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder has to be meticulously crushed and doped with sintering aids like Y ₂ O ₃, CaO, or rare earth oxides to promote densification at temperature levels between 1700 ° C and 1900 ° C under nitrogen ambience.
These additives develop transient fluid phases that boost grain boundary diffusion, allowing full densification (> 99% theoretical density) while minimizing oxygen contamination.
Post-sintering annealing in carbon-rich settings can additionally lower oxygen content by getting rid of intergranular oxides, therefore recovering peak thermal conductivity.
Attaining uniform microstructure with regulated grain dimension is crucial to stabilize mechanical strength, thermal efficiency, and manufacturability.
2.2 Substratum Shaping and Metallization
As soon as sintered, AlN porcelains are precision-ground and lapped to meet tight dimensional resistances needed for digital product packaging, usually to micrometer-level monotony.
Through-hole drilling, laser cutting, and surface area patterning make it possible for assimilation into multilayer bundles and hybrid circuits.
A vital step in substrate construction is metallization– the application of conductive layers (usually tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper foils are adhered to AlN surface areas at raised temperature levels in a regulated ambience, forming a strong user interface appropriate for high-current applications.
Alternate methods like active steel brazing (AMB) use titanium-containing solders to enhance attachment and thermal exhaustion resistance, especially under repeated power biking.
Correct interfacial design makes certain reduced thermal resistance and high mechanical dependability in operating tools.
3. Efficiency Advantages in Electronic Systems
3.1 Thermal Management in Power Electronics
AlN substrates excel in taking care of heat generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electric lorries, renewable resource inverters, and telecommunications facilities.
Reliable heat removal protects against localized hotspots, minimizes thermal anxiety, and prolongs tool lifetime by alleviating electromigration and delamination threats.
Contrasted to typical Al two O ₃ substratums, AlN allows smaller sized plan dimensions and greater power thickness as a result of its superior thermal conductivity, permitting developers to push performance borders without jeopardizing integrity.
In LED illumination and laser diodes, where junction temperature directly influences performance and color stability, AlN substratums considerably improve luminous output and operational life expectancy.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) also very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), minimizing thermo-mechanical stress throughout thermal biking.
3.2 Electrical and Mechanical Reliability
Past thermal efficiency, AlN uses reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) throughout a broad frequency array, making it perfect for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against dampness ingress, eliminating rust dangers in moist settings– a crucial benefit over natural substrates.
Mechanically, AlN possesses high flexural toughness (300– 400 MPa) and solidity (HV ≈ 1200), guaranteeing resilience during handling, assembly, and field procedure.
These features jointly add to enhanced system dependability, decreased failure rates, and reduced complete cost of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Solutions
AlN ceramic substratums are now standard in advanced power modules for industrial electric motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid lorries.
In aerospace and protection, they support radar systems, electronic warfare units, and satellite interactions, where performance under severe problems is non-negotiable.
Clinical imaging equipment, consisting of X-ray generators and MRI systems, also gain from AlN’s radiation resistance and signal integrity.
As electrification patterns increase throughout transportation and power industries, need for AlN substrates remains to expand, driven by the demand for compact, efficient, and reliable power electronic devices.
4.2 Arising Assimilation and Lasting Development
Future improvements focus on integrating AlN right into three-dimensional packaging designs, ingrained passive parts, and heterogeneous combination systems incorporating Si, SiC, and GaN devices.
Study right into nanostructured AlN films and single-crystal substratums intends to additional increase thermal conductivity toward academic limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Initiatives to minimize production prices through scalable powder synthesis, additive manufacturing of complex ceramic frameworks, and recycling of scrap AlN are getting energy to boost sustainability.
In addition, modeling devices using limited aspect evaluation (FEA) and machine learning are being utilized to maximize substrate layout for details thermal and electric loads.
Finally, light weight aluminum nitride ceramic substratums represent a keystone innovation in contemporary electronics, distinctly bridging the void between electric insulation and phenomenal thermal conduction.
Their duty in making it possible for high-efficiency, high-reliability power systems highlights their tactical value in the continuous advancement of electronic and power technologies.
