1. Product Basics and Architectural Features of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

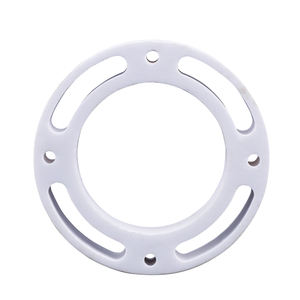

(Alumina Ceramic Substrates)
Alumina ceramic substratums, primarily composed of light weight aluminum oxide (Al â‚‚ O SIX), serve as the foundation of contemporary electronic product packaging as a result of their extraordinary equilibrium of electrical insulation, thermal security, mechanical strength, and manufacturability.
The most thermodynamically steady phase of alumina at high temperatures is diamond, or α-Al Two O THREE, which takes shape in a hexagonal close-packed oxygen latticework with light weight aluminum ions occupying two-thirds of the octahedral interstitial websites.
This dense atomic plan imparts high hardness (Mohs 9), excellent wear resistance, and strong chemical inertness, making α-alumina ideal for rough operating settings.
Business substrates usually have 90– 99.8% Al â‚‚ O FIVE, with minor enhancements of silica (SiO â‚‚), magnesia (MgO), or rare planet oxides utilized as sintering aids to advertise densification and control grain growth during high-temperature processing.
Higher pureness qualities (e.g., 99.5% and above) show exceptional electrical resistivity and thermal conductivity, while reduced pureness variants (90– 96%) provide cost-efficient services for less demanding applications.
1.2 Microstructure and Flaw Design for Electronic Reliability
The efficiency of alumina substrates in electronic systems is seriously depending on microstructural uniformity and problem minimization.
A fine, equiaxed grain structure– generally varying from 1 to 10 micrometers– makes certain mechanical stability and lowers the possibility of crack breeding under thermal or mechanical anxiety.
Porosity, particularly interconnected or surface-connected pores, need to be minimized as it weakens both mechanical strength and dielectric performance.
Advanced handling methods such as tape casting, isostatic pushing, and regulated sintering in air or managed ambiences make it possible for the manufacturing of substrates with near-theoretical thickness (> 99.5%) and surface area roughness listed below 0.5 µm, essential for thin-film metallization and cord bonding.
Additionally, impurity partition at grain borders can cause leak currents or electrochemical migration under bias, demanding rigorous control over resources purity and sintering conditions to guarantee long-term integrity in moist or high-voltage environments.
2. Production Processes and Substratum Fabrication Technologies

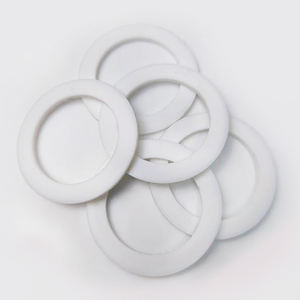

( Alumina Ceramic Substrates)
2.1 Tape Casting and Environment-friendly Body Processing
The manufacturing of alumina ceramic substrates starts with the prep work of an extremely dispersed slurry containing submicron Al â‚‚ O five powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is processed using tape casting– a continual approach where the suspension is spread over a relocating carrier film utilizing an accuracy medical professional blade to attain consistent thickness, normally in between 0.1 mm and 1.0 mm.
After solvent dissipation, the resulting “environment-friendly tape” is versatile and can be punched, drilled, or laser-cut to create by means of openings for vertical interconnections.
Multiple layers might be laminated to produce multilayer substratums for complicated circuit integration, although the majority of industrial applications utilize single-layer setups due to set you back and thermal expansion factors to consider.
The green tapes are after that very carefully debound to remove organic ingredients through controlled thermal decay before final sintering.
2.2 Sintering and Metallization for Circuit Assimilation
Sintering is conducted in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore removal and grain coarsening to attain full densification.
The linear contraction throughout sintering– normally 15– 20%– should be specifically predicted and compensated for in the style of environment-friendly tapes to make certain dimensional accuracy of the last substratum.
Adhering to sintering, metallization is put on develop conductive traces, pads, and vias.
Two main methods control: thick-film printing and thin-film deposition.
In thick-film innovation, pastes including steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substrate and co-fired in a minimizing atmosphere to develop robust, high-adhesion conductors.
For high-density or high-frequency applications, thin-film procedures such as sputtering or dissipation are utilized to down payment bond layers (e.g., titanium or chromium) complied with by copper or gold, enabling sub-micron pattern through photolithography.
Vias are filled with conductive pastes and discharged to establish electrical affiliations between layers in multilayer designs.
3. Functional Characteristics and Performance Metrics in Electronic Equipment
3.1 Thermal and Electric Behavior Under Functional Stress
Alumina substratums are valued for their desirable combination of moderate thermal conductivity (20– 35 W/m · K for 96– 99.8% Al Two O FIVE), which makes it possible for efficient warm dissipation from power tools, and high volume resistivity (> 10 ¹ⴠΩ · centimeters), making certain minimal leak current.
Their dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is stable over a broad temperature and regularity range, making them ideal for high-frequency circuits approximately several gigahertz, although lower-κ products like light weight aluminum nitride are preferred for mm-wave applications.
The coefficient of thermal development (CTE) of alumina (~ 6.8– 7.2 ppm/K) is sensibly well-matched to that of silicon (~ 3 ppm/K) and specific product packaging alloys, reducing thermo-mechanical stress and anxiety throughout tool procedure and thermal cycling.
Nonetheless, the CTE mismatch with silicon stays a problem in flip-chip and direct die-attach setups, usually calling for certified interposers or underfill products to alleviate fatigue failure.
3.2 Mechanical Robustness and Environmental Durability
Mechanically, alumina substrates display high flexural toughness (300– 400 MPa) and excellent dimensional stability under load, allowing their use in ruggedized electronic devices for aerospace, automobile, and commercial control systems.
They are resistant to resonance, shock, and creep at elevated temperatures, preserving structural honesty approximately 1500 ° C in inert environments.
In humid environments, high-purity alumina shows minimal wetness absorption and exceptional resistance to ion movement, making certain long-lasting reliability in exterior and high-humidity applications.
Surface solidity likewise safeguards versus mechanical damage during handling and setting up, although care has to be required to prevent side chipping due to integral brittleness.
4. Industrial Applications and Technical Impact Across Sectors
4.1 Power Electronic Devices, RF Modules, and Automotive Solutions
Alumina ceramic substrates are common in power digital modules, including insulated gate bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they supply electric seclusion while assisting in warm transfer to warm sinks.
In radio frequency (RF) and microwave circuits, they work as service provider platforms for hybrid integrated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks as a result of their secure dielectric buildings and low loss tangent.
In the vehicle sector, alumina substratums are used in engine control systems (ECUs), sensor packages, and electric vehicle (EV) power converters, where they withstand heats, thermal cycling, and exposure to corrosive fluids.
Their dependability under severe conditions makes them indispensable for safety-critical systems such as anti-lock braking (ABDOMINAL MUSCLE) and progressed chauffeur assistance systems (ADAS).
4.2 Medical Gadgets, Aerospace, and Arising Micro-Electro-Mechanical Systems
Past customer and commercial electronics, alumina substratums are utilized in implantable medical tools such as pacemakers and neurostimulators, where hermetic securing and biocompatibility are vital.
In aerospace and protection, they are made use of in avionics, radar systems, and satellite interaction components because of their radiation resistance and security in vacuum cleaner environments.
Furthermore, alumina is increasingly made use of as an architectural and insulating platform in micro-electro-mechanical systems (MEMS), including pressure sensing units, accelerometers, and microfluidic devices, where its chemical inertness and compatibility with thin-film processing are beneficial.
As digital systems continue to demand higher power densities, miniaturization, and reliability under extreme problems, alumina ceramic substratums remain a cornerstone product, bridging the gap in between performance, cost, and manufacturability in sophisticated electronic packaging.
