1. Material Basics and Crystallographic Characteristic
1.1 Phase Structure and Polymorphic Habits

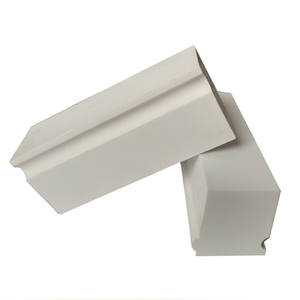

(Alumina Ceramic Blocks)
Alumina (Al ₂ O SIX), particularly in its α-phase form, is one of the most commonly utilized technological ceramics because of its superb equilibrium of mechanical toughness, chemical inertness, and thermal stability.
While aluminum oxide exists in several metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline structure at high temperatures, identified by a thick hexagonal close-packed (HCP) plan of oxygen ions with light weight aluminum cations inhabiting two-thirds of the octahedral interstitial websites.
This bought structure, called corundum, confers high latticework energy and strong ionic-covalent bonding, resulting in a melting point of about 2054 ° C and resistance to stage makeover under severe thermal problems.
The change from transitional aluminas to α-Al ₂ O three commonly happens over 1100 ° C and is gone along with by considerable volume contraction and loss of surface area, making phase control crucial during sintering.
High-purity α-alumina blocks (> 99.5% Al Two O ₃) exhibit premium efficiency in severe atmospheres, while lower-grade structures (90– 95%) may consist of second stages such as mullite or lustrous grain limit stages for economical applications.
1.2 Microstructure and Mechanical Integrity
The efficiency of alumina ceramic blocks is profoundly influenced by microstructural functions including grain size, porosity, and grain limit cohesion.
Fine-grained microstructures (grain size < 5 µm) usually give higher flexural strength (as much as 400 MPa) and improved fracture durability compared to grainy counterparts, as smaller grains restrain fracture propagation.
Porosity, even at low levels (1– 5%), significantly decreases mechanical toughness and thermal conductivity, necessitating complete densification through pressure-assisted sintering methods such as warm pressing or warm isostatic pressing (HIP).
Ingredients like MgO are often presented in trace amounts (≈ 0.1 wt%) to prevent unusual grain development throughout sintering, ensuring uniform microstructure and dimensional stability.
The resulting ceramic blocks display high hardness (≈ 1800 HV), excellent wear resistance, and reduced creep rates at raised temperature levels, making them ideal for load-bearing and rough atmospheres.
2. Manufacturing and Handling Techniques

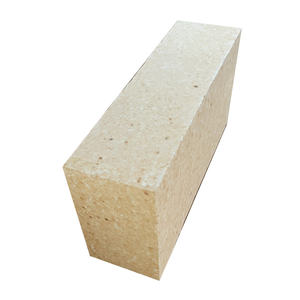

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Approaches
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders stemmed from calcined bauxite using the Bayer process or synthesized through precipitation or sol-gel routes for greater pureness.
Powders are grated to accomplish slim bit dimension circulation, improving packaging thickness and sinterability.
Forming into near-net geometries is achieved with numerous creating strategies: uniaxial pressing for easy blocks, isostatic pressing for uniform density in intricate shapes, extrusion for long areas, and slip casting for detailed or big parts.
Each method influences green body density and homogeneity, which directly influence last homes after sintering.
For high-performance applications, advanced creating such as tape casting or gel-casting might be used to achieve exceptional dimensional control and microstructural uniformity.
2.2 Sintering and Post-Processing
Sintering in air at temperatures in between 1600 ° C and 1750 ° C enables diffusion-driven densification, where bit necks grow and pores diminish, resulting in a totally thick ceramic body.
Atmosphere control and exact thermal profiles are essential to protect against bloating, warping, or differential shrinking.
Post-sintering operations consist of ruby grinding, lapping, and polishing to achieve tight resistances and smooth surface finishes required in sealing, gliding, or optical applications.
Laser cutting and waterjet machining permit exact modification of block geometry without inducing thermal tension.
Surface area therapies such as alumina finish or plasma splashing can better enhance wear or rust resistance in specialized solution problems.
3. Functional Qualities and Performance Metrics
3.1 Thermal and Electrical Actions
Alumina ceramic blocks exhibit modest thermal conductivity (20– 35 W/(m · K)), dramatically higher than polymers and glasses, allowing effective warm dissipation in digital and thermal management systems.
They preserve architectural stability up to 1600 ° C in oxidizing ambiences, with low thermal expansion (≈ 8 ppm/K), adding to outstanding thermal shock resistance when correctly created.
Their high electric resistivity (> 10 ¹ⴠΩ · centimeters) and dielectric strength (> 15 kV/mm) make them suitable electric insulators in high-voltage settings, including power transmission, switchgear, and vacuum systems.
Dielectric constant (εᵣ ≈ 9– 10) continues to be secure over a vast frequency array, sustaining usage in RF and microwave applications.
These residential properties enable alumina obstructs to work dependably in settings where organic products would certainly deteriorate or fall short.
3.2 Chemical and Environmental Sturdiness
Among one of the most beneficial characteristics of alumina blocks is their extraordinary resistance to chemical strike.
They are extremely inert to acids (other than hydrofluoric and warm phosphoric acids), alkalis (with some solubility in solid caustics at elevated temperature levels), and molten salts, making them suitable for chemical processing, semiconductor fabrication, and pollution control devices.
Their non-wetting actions with many molten metals and slags allows usage in crucibles, thermocouple sheaths, and heater cellular linings.
Furthermore, alumina is non-toxic, biocompatible, and radiation-resistant, expanding its utility right into medical implants, nuclear securing, and aerospace components.
Very little outgassing in vacuum cleaner atmospheres better certifies it for ultra-high vacuum cleaner (UHV) systems in research and semiconductor production.
4. Industrial Applications and Technological Combination
4.1 Architectural and Wear-Resistant Components
Alumina ceramic blocks function as important wear parts in markets ranging from extracting to paper manufacturing.
They are utilized as liners in chutes, receptacles, and cyclones to resist abrasion from slurries, powders, and granular materials, significantly prolonging life span contrasted to steel.
In mechanical seals and bearings, alumina blocks supply low rubbing, high firmness, and corrosion resistance, reducing upkeep and downtime.
Custom-shaped blocks are integrated right into cutting devices, passes away, and nozzles where dimensional security and edge retention are vital.
Their light-weight nature (thickness ≈ 3.9 g/cm ³) additionally adds to energy financial savings in relocating parts.
4.2 Advanced Design and Emerging Uses
Beyond conventional functions, alumina blocks are significantly used in innovative technical systems.
In electronics, they function as shielding substratums, heat sinks, and laser tooth cavity components due to their thermal and dielectric residential properties.
In energy systems, they serve as strong oxide gas cell (SOFC) components, battery separators, and blend reactor plasma-facing materials.
Additive production of alumina through binder jetting or stereolithography is arising, enabling complicated geometries previously unattainable with traditional creating.
Hybrid structures combining alumina with steels or polymers via brazing or co-firing are being developed for multifunctional systems in aerospace and defense.
As product science breakthroughs, alumina ceramic blocks continue to evolve from passive structural aspects into active parts in high-performance, lasting design remedies.
In summary, alumina ceramic blocks stand for a fundamental course of sophisticated ceramics, incorporating durable mechanical performance with outstanding chemical and thermal security.
Their convenience throughout commercial, digital, and scientific domains underscores their long-lasting value in modern engineering and modern technology advancement.
