1. Product Basics and Structural Features of Alumina Ceramics
1.1 Structure, Crystallography, and Phase Security

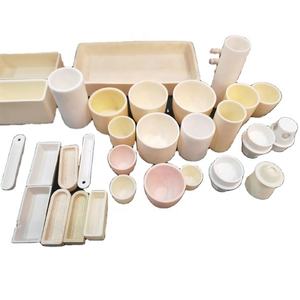

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made mostly from light weight aluminum oxide (Al two O TWO), among the most widely made use of advanced porcelains because of its extraordinary combination of thermal, mechanical, and chemical stability.
The dominant crystalline stage in these crucibles is alpha-alumina (α-Al two O FIVE), which belongs to the diamond framework– a hexagonal close-packed arrangement of oxygen ions with two-thirds of the octahedral interstices inhabited by trivalent aluminum ions.
This dense atomic packaging causes solid ionic and covalent bonding, conferring high melting point (2072 ° C), outstanding solidity (9 on the Mohs range), and resistance to sneak and deformation at elevated temperature levels.
While pure alumina is suitable for most applications, trace dopants such as magnesium oxide (MgO) are often added throughout sintering to hinder grain development and boost microstructural harmony, thereby enhancing mechanical strength and thermal shock resistance.
The stage purity of α-Al two O two is critical; transitional alumina phases (e.g., γ, δ, θ) that develop at reduced temperatures are metastable and undertake quantity modifications upon conversion to alpha phase, potentially leading to fracturing or failing under thermal cycling.
1.2 Microstructure and Porosity Control in Crucible Fabrication
The efficiency of an alumina crucible is greatly affected by its microstructure, which is identified during powder handling, forming, and sintering phases.
High-purity alumina powders (commonly 99.5% to 99.99% Al ₂ O TWO) are shaped right into crucible forms making use of methods such as uniaxial pressing, isostatic pressing, or slip casting, adhered to by sintering at temperature levels between 1500 ° C and 1700 ° C.
Throughout sintering, diffusion mechanisms drive bit coalescence, lowering porosity and raising density– ideally accomplishing > 99% academic density to minimize leaks in the structure and chemical infiltration.
Fine-grained microstructures enhance mechanical stamina and resistance to thermal stress, while regulated porosity (in some specialized grades) can boost thermal shock tolerance by dissipating stress energy.
Surface finish is also vital: a smooth indoor surface minimizes nucleation sites for unwanted responses and promotes very easy elimination of strengthened materials after handling.
Crucible geometry– consisting of wall surface thickness, curvature, and base design– is optimized to stabilize warm transfer efficiency, structural honesty, and resistance to thermal gradients throughout rapid heating or air conditioning.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Performance and Thermal Shock Habits
Alumina crucibles are routinely utilized in settings exceeding 1600 ° C, making them important in high-temperature materials study, metal refining, and crystal growth processes.
They show low thermal conductivity (~ 30 W/m · K), which, while restricting warmth transfer rates, additionally supplies a level of thermal insulation and assists maintain temperature level gradients necessary for directional solidification or area melting.
A key obstacle is thermal shock resistance– the capacity to withstand abrupt temperature changes without fracturing.
Although alumina has a fairly reduced coefficient of thermal development (~ 8 × 10 â»â¶/ K), its high rigidity and brittleness make it at risk to crack when based on high thermal slopes, particularly throughout quick heating or quenching.
To minimize this, individuals are encouraged to comply with regulated ramping methods, preheat crucibles slowly, and prevent straight exposure to open up fires or cool surfaces.
Advanced grades integrate zirconia (ZrO â‚‚) strengthening or rated make-ups to boost split resistance via devices such as stage makeover toughening or residual compressive tension generation.
2.2 Chemical Inertness and Compatibility with Responsive Melts
One of the defining benefits of alumina crucibles is their chemical inertness toward a variety of molten metals, oxides, and salts.
They are very resistant to fundamental slags, molten glasses, and several metal alloys, consisting of iron, nickel, cobalt, and their oxides, which makes them suitable for usage in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.
However, they are not generally inert: alumina reacts with highly acidic fluxes such as phosphoric acid or boron trioxide at high temperatures, and it can be worn away by molten alkalis like sodium hydroxide or potassium carbonate.
Especially vital is their communication with aluminum steel and aluminum-rich alloys, which can reduce Al two O three through the reaction: 2Al + Al ₂ O TWO → 3Al two O (suboxide), leading to matching and eventual failure.
Similarly, titanium, zirconium, and rare-earth metals show high sensitivity with alumina, forming aluminides or intricate oxides that jeopardize crucible integrity and contaminate the melt.
For such applications, alternative crucible products like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are chosen.
3. Applications in Scientific Study and Industrial Processing
3.1 Duty in Products Synthesis and Crystal Development
Alumina crucibles are main to various high-temperature synthesis paths, including solid-state responses, change growth, and melt handling of useful ceramics and intermetallics.
In solid-state chemistry, they act as inert containers for calcining powders, manufacturing phosphors, or preparing precursor products for lithium-ion battery cathodes.
For crystal development strategies such as the Czochralski or Bridgman techniques, alumina crucibles are utilized to have molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness guarantees marginal contamination of the expanding crystal, while their dimensional security sustains reproducible growth conditions over extended periods.
In flux development, where solitary crystals are expanded from a high-temperature solvent, alumina crucibles must withstand dissolution by the flux tool– generally borates or molybdates– requiring careful choice of crucible grade and handling parameters.
3.2 Usage in Analytical Chemistry and Industrial Melting Workflow
In analytical research laboratories, alumina crucibles are standard equipment in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where specific mass dimensions are made under controlled environments and temperature level ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing atmospheres make them ideal for such precision measurements.
In industrial settings, alumina crucibles are utilized in induction and resistance heaters for melting precious metals, alloying, and casting operations, specifically in precious jewelry, oral, and aerospace component production.
They are additionally used in the production of technological porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to stop contamination and make certain consistent home heating.
4. Limitations, Dealing With Practices, and Future Product Enhancements
4.1 Operational Restraints and Finest Practices for Longevity
Regardless of their toughness, alumina crucibles have distinct operational limits that have to be valued to make sure safety and performance.
Thermal shock continues to be the most common cause of failure; for that reason, gradual heating and cooling cycles are necessary, particularly when transitioning through the 400– 600 ° C range where recurring stress and anxieties can collect.
Mechanical damage from messing up, thermal cycling, or call with tough materials can launch microcracks that circulate under stress.
Cleaning ought to be done carefully– preventing thermal quenching or abrasive approaches– and made use of crucibles need to be examined for signs of spalling, staining, or contortion prior to reuse.
Cross-contamination is an additional concern: crucibles made use of for reactive or harmful materials should not be repurposed for high-purity synthesis without comprehensive cleaning or should be disposed of.
4.2 Arising Trends in Composite and Coated Alumina Solutions
To expand the abilities of traditional alumina crucibles, researchers are establishing composite and functionally rated products.
Instances consist of alumina-zirconia (Al ₂ O FOUR-ZrO ₂) composites that enhance sturdiness and thermal shock resistance, or alumina-silicon carbide (Al two O ₃-SiC) variants that boost thermal conductivity for even more uniform home heating.
Surface coverings with rare-earth oxides (e.g., yttria or scandia) are being discovered to create a diffusion barrier against responsive steels, therefore broadening the variety of compatible thaws.
Furthermore, additive manufacturing of alumina components is arising, allowing custom crucible geometries with interior networks for temperature tracking or gas flow, opening up brand-new possibilities in process control and reactor layout.
To conclude, alumina crucibles stay a foundation of high-temperature innovation, valued for their dependability, pureness, and adaptability across clinical and commercial domains.
Their proceeded advancement via microstructural engineering and hybrid material style makes certain that they will remain vital devices in the innovation of materials science, power innovations, and progressed manufacturing.
