Bearings are often called the “joints of market.” Obtaining the option right directly impacts your equipment’s dependability, life span, and upkeep expenses. Several bearing failures don’t originate from poor quality– they come from wrong options. Points like tons computation errors, neglecting rate limits, or selecting the incorrect lubrication approach. These tiny blunders can trigger devices to break down early in its life span. This overview strolls you via the entire choice process, providing designers and procurement professionals a clear course from analyzing working conditions to confirming the best bearing design.
Component One: What You Required to Know Before Beginning
Prior to you open up any type of bearing directory, ask yourself one inquiry: What exactly does this device require the bearing to do? The solution hinges on 5 essential areas:
1. Load Features
Lots is the top factor in bearing selection. You require to determine three points:
Instructions: Is it radial lots (perpendicular to the shaft), axial lots (alongside the shaft), or a mix of both?
Size: Is it light, moderate, or heavy? Any type of effect lots?
Nature: Is the lots stable or transforming? How frequently do impact lots happen and just how solid are they?
Take a belt conveyor for example. The bearings at the drive end take on radial lots from belt stress, the weight of the belt and rollers, plus the shaft setting up. When calculating, you need to think about different operating conditions– startup, regular running, braking– and make use of the worst-case scenario for your design.
2. Rate Conditions

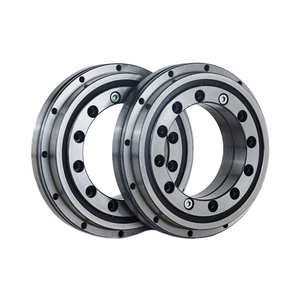

(bearings for steel mill)
Speed is another important factor affecting birthing life. According to tiredness life concept, bearing life has an inverted relationship with rate. For variable speed problems, you require to determine the equivalent speed. Take a rotating kiln support roller– its rate might range from 0.5 to 2.5 r/min. You ‘d need to weight the running time at each rate to get an equivalent value.
One thing to look out for: understanding just the maximum rate can mess up your lubrication technique. The lubricating substance you select based upon top speed may not develop a proper oil film at reduced speeds. Additionally, if your device has long idle periods, you ought to point out that– otherwise close-by equipment vibrations might create false brinelling damages.
3. Required Service Life
Bearing service life is generally revealed as L10h (the number of hours that 90% of a bearing team will certainly reach prior to exhaustion spalling appears). A common blunder is choosing an excessively long life– once L10h goes beyond 100,000 hours, the bearing size gets as well large. It comes to be more difficult to lube, torque increases, and it comes to be much more conscious minimal tons. Ultimately, it might fail for reasons apart from fatigue.
4. Area Constraints
You must know your offered area limitations from the start– shaft size range, housing bore size, axial length restrictions. As soon as you know the matching shaft diameter and readily available space, you can swiftly narrow down your alternatives.
5. Running Accuracy Demands
Many applications do simply great with common accuracy bearings. However, for high-speed or high-precision equipment like machine device pins, you’ll need P5, P4, or perhaps greater grades. Just remember that opting for higher precision without a genuine requirement will increase costs considerably. Suit the grade to your actual needs.
Part Two: Matching Bearing Kinds to Working Conditions
When you have those specifications clear, the following step is to match the appropriate bearing kind based on tons direction, dimension, rate, and imbalance tolerance.
1. Tons Direction: Radial, Axial, or Combined?

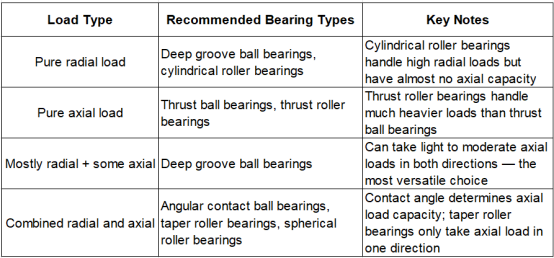

This is the most fundamental filter. It can direct you to a couple of prospects right away:
When the axial-to-radial load proportion (Fa/Fr) modifications, your choice reasoning changes as well. At reduced ratios, select deep groove round bearings. At modest ratios, utilize small-contact-angle angular call bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or consider combining a drive bearing with a radial bearing.
( Radial)
2. Load Size: Round Bearings or Roller Bearings?
This is a traditional choice:
Light or moderate tons: Select ball bearings (deep groove or angular contact). The factor contact in between balls and raceways offers reduced rubbing, making them ideal for tool to broadband.
Heavy or impact lots: You must use roller bearings (round, round, or taper). Line get in touch with between rollers and raceways offers much greater lots capacity and much better influence resistance.
3. Speed: Sphere Bearings for Broadband, Roller Bearings for Low
Typically talking, ball bearings have greater rate limitations than roller bearings. For high-speed applications (above 1000 r/min), placed sphere bearings at the top of your list. When you require the highest possible rate with pure radial load, open deep groove sphere bearings are your best choice. For combined lots at high speed, angular get in touch with round bearings are the method to go.
Round roller bearings, taper roller bearings, and needle bearings have relatively reduced speed limits. They’re mainly matched for low-to-medium rate, heavy-load conditions.
4. Imbalance Resistance: Do You Required Self-Aligning?
This one typically gets ignored however it’s extremely essential. You must think about self-aligning bearings when:
Bearing housing bores don’t align well
The shaft isn’t tight sufficient and flexes during procedure
The bearing span is long and thermal development creates angular misalignment
You’re using separate split real estates (like pillow block bearings)
Round roller bearings and spherical sphere bearings have scooped outer ring raceways. This enables a particular amount of angular misalignment between the internal and external rings without unsafe side anxiety. They can make up for both dynamic deflection and static setup mistakes.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely restricted self-aligning capacity. Even a tiny angular misalignment can trigger anxiety focus at the roller finishes, resulting in high side stress that considerably shorten birthing life. Deep groove ball bearings do have some self-aligning capability, however the allowed angle is tiny– surpassing it will reduce life too.
5. Axial Growth Settlement: Fixed End or Drifting End?
Long shafts increase and contract with temperature adjustments during procedure. That means you need to set up your bearing arrangement with one fixed end and one drifting end.
NU and N collection round roller bearings have no flanges on the inner ring (or on one side). This allows the shaft relocation freely in the axial direction about the housing– making them excellent as floating-end bearings. NJ and NUP series can give axial positioning in one or both instructions, so they function well as fixed-end bearings. This arrangement is extremely usual in gearboxes and electrical motors.
Component Three: BMB Line Of Product at a Look

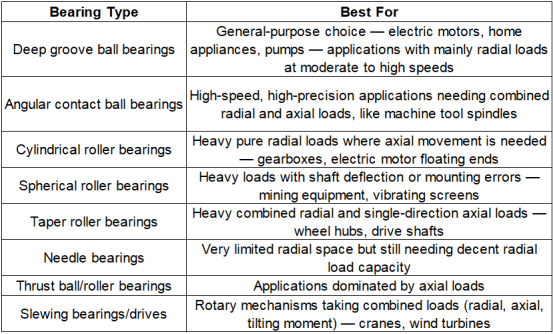

BMB offers a full range of industrial bearings, covering all the major types we have actually talked about. This fast referral table links the choice concepts over straight to certain product classifications:
Part 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Criterion accuracy (P0) helps the substantial bulk of basic machinery. For precision devices like machine tool pins or aerospace parts, you’ll require P5 or greater. Tighter precision means tighter dimensional tolerances and much better running precision– however likewise higher costs.
2. Interior Clearance and Preload
Bearings require to maintain appropriate interior clearance after installation. Too much clearance leads to resonance and sound. Too little, and thermal expansion can trigger the bearing to confiscate. In diplomatic immunities like equipment tool spindles, preload (applying adverse clearance) is utilized to enhance system strength and rotational precision.
3. Lubricant Option
Lubrication is a make-or-break variable for birthing life. Oil helps most moderate-speed and temperature level applications– it’s straightforward to seal and can run maintenance-free for extended periods. Oil (oil bath, oil haze, jet lubrication) is better for high-speed or high-temperature problems, as it dissipates heat more effectively. When picking a lubricating substance, examine the speed aspect (ndm value). Do not simply choose based upon optimum speed– the oil you pick could not create an appropriate film at lower speeds.
4. Sealing Arrangements
Select the seal type based upon your setting: contact seals keep dust out well however include some friction; non-contact seals help broadband however offer less defense versus contamination; open bearings count on exterior securing systems.
Part Five: Life Estimation– From Theory to Technique
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your picked bearing will in fact satisfy the predicted service life. This is where standard score life estimation is available in.
The standard rating life L10 formula (ISO 281 standard):
For ball bearings: L10 = (C/P) ³ × (10 â¶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: standard vibrant load rating (kN)– found in the item catalog
P: equal dynamic load (kN)– takes both radial and axial lots into account
The equal dynamic tons P is determined as: P = X · Fr + Y · Fa
Fr is the radial tons, Fa is the axial tons
X and Y are coefficients that depend upon bearing kind and the Fa/Fr proportion– check the catalog for these worths
For even more requiring conditions, you can use change elements: Ln = a1 × a2 × a3 × L10
a1 is the integrity element (a1 = 1 for 90% reliability, regarding 0.21 for 99%)
a2 is the material factor (high-grade bearing steel can get to 1.5 to 2)
a3 is the operating problems factor (excellent lubrication and tidiness can provide 2 to 3)
With this computation, engineers can verify that the selected bearing fulfills the required service life. It likewise assists compare several choices and make data-driven decisions.
This guide has walked you through the full choice course– from examining working conditions, to matching the appropriate bearing type, to verifying life expectancy. Recognizing and applying this method will certainly aid you make exact, efficient, and cost-efficient bearing decisions across a variety of industrial applications.
