1. Product Composition and Architectural Layout
1.1 Glass Chemistry and Spherical Style

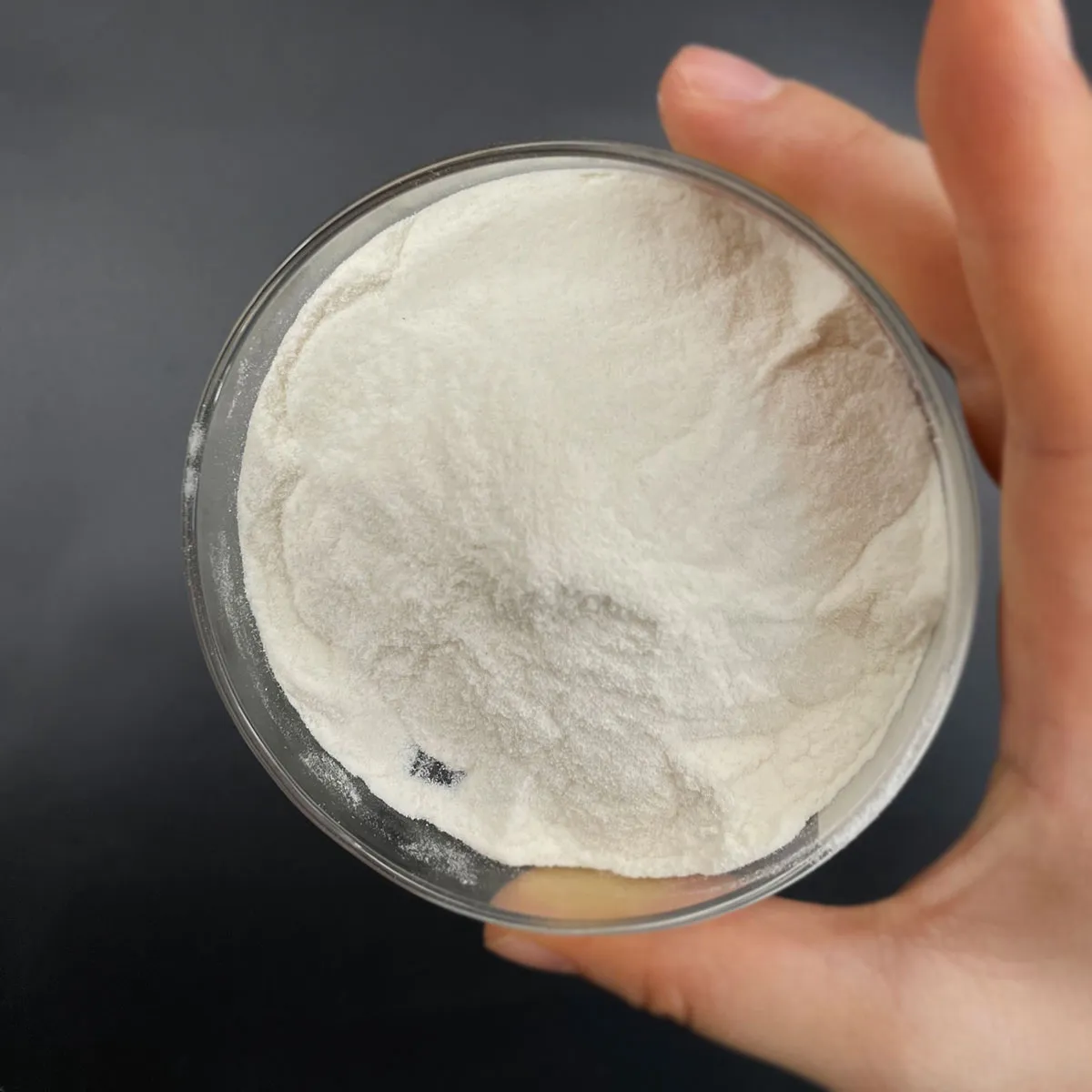

(Hollow glass microspheres)
Hollow glass microspheres (HGMs) are tiny, round bits made up of alkali borosilicate or soda-lime glass, commonly varying from 10 to 300 micrometers in size, with wall densities in between 0.5 and 2 micrometers.
Their defining attribute is a closed-cell, hollow interior that gives ultra-low thickness– typically listed below 0.2 g/cm ³ for uncrushed rounds– while keeping a smooth, defect-free surface critical for flowability and composite assimilation.
The glass structure is engineered to balance mechanical strength, thermal resistance, and chemical sturdiness; borosilicate-based microspheres use superior thermal shock resistance and reduced alkali material, lessening reactivity in cementitious or polymer matrices.
The hollow framework is formed through a controlled development procedure during manufacturing, where precursor glass fragments having an unstable blowing agent (such as carbonate or sulfate compounds) are heated up in a furnace.
As the glass softens, interior gas generation creates interior pressure, causing the fragment to blow up into a perfect round prior to fast air conditioning strengthens the framework.
This exact control over dimension, wall density, and sphericity allows predictable efficiency in high-stress design environments.
1.2 Density, Strength, and Failing Devices
A vital efficiency statistics for HGMs is the compressive strength-to-density ratio, which identifies their ability to survive handling and service lots without fracturing.
Industrial qualities are classified by their isostatic crush toughness, ranging from low-strength balls (~ 3,000 psi) appropriate for coverings and low-pressure molding, to high-strength variations going beyond 15,000 psi utilized in deep-sea buoyancy modules and oil well sealing.
Failure generally takes place using elastic buckling as opposed to fragile crack, a behavior controlled by thin-shell mechanics and influenced by surface defects, wall harmony, and inner pressure.
Once fractured, the microsphere sheds its shielding and lightweight properties, highlighting the need for mindful handling and matrix compatibility in composite layout.
Regardless of their delicacy under factor lots, the spherical geometry distributes stress and anxiety uniformly, enabling HGMs to endure significant hydrostatic pressure in applications such as subsea syntactic foams.
( Hollow glass microspheres)
2. Manufacturing and Quality Assurance Processes
2.1 Production Strategies and Scalability
HGMs are created industrially using fire spheroidization or rotary kiln development, both including high-temperature handling of raw glass powders or preformed grains.
In flame spheroidization, great glass powder is infused into a high-temperature flame, where surface area stress draws liquified beads into balls while interior gases broaden them into hollow structures.
Rotating kiln methods involve feeding precursor beads into a rotating heating system, allowing constant, massive manufacturing with tight control over fragment size distribution.
Post-processing steps such as sieving, air classification, and surface area therapy make certain regular bit size and compatibility with target matrices.
Advanced manufacturing now includes surface area functionalization with silane coupling agents to boost adhesion to polymer resins, minimizing interfacial slippage and enhancing composite mechanical buildings.
2.2 Characterization and Performance Metrics
Quality control for HGMs depends on a collection of analytical techniques to validate critical criteria.
Laser diffraction and scanning electron microscopy (SEM) examine particle size circulation and morphology, while helium pycnometry determines true bit density.
Crush stamina is evaluated using hydrostatic pressure examinations or single-particle compression in nanoindentation systems.
Mass and touched density measurements notify dealing with and blending habits, important for commercial formula.
Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) examine thermal security, with many HGMs remaining secure as much as 600– 800 ° C, relying on structure.
These standard tests ensure batch-to-batch uniformity and allow reputable performance prediction in end-use applications.
3. Practical Residences and Multiscale Consequences
3.1 Thickness Reduction and Rheological Actions
The primary function of HGMs is to lower the density of composite materials without dramatically compromising mechanical integrity.
By changing strong material or metal with air-filled balls, formulators accomplish weight cost savings of 20– 50% in polymer compounds, adhesives, and cement systems.
This lightweighting is crucial in aerospace, marine, and auto markets, where lowered mass converts to improved fuel efficiency and payload capability.
In fluid systems, HGMs influence rheology; their round form lowers thickness compared to uneven fillers, boosting circulation and moldability, however high loadings can boost thixotropy as a result of particle communications.
Correct dispersion is important to stop pile and guarantee uniform residential properties throughout the matrix.
3.2 Thermal and Acoustic Insulation Properties
The entrapped air within HGMs supplies outstanding thermal insulation, with effective thermal conductivity values as reduced as 0.04– 0.08 W/(m · K), depending on volume fraction and matrix conductivity.
This makes them important in protecting finishings, syntactic foams for subsea pipelines, and fireproof structure materials.
The closed-cell structure likewise hinders convective heat transfer, improving efficiency over open-cell foams.
Likewise, the resistance inequality between glass and air scatters sound waves, giving modest acoustic damping in noise-control applications such as engine enclosures and aquatic hulls.
While not as efficient as committed acoustic foams, their double duty as light-weight fillers and secondary dampers includes functional value.
4. Industrial and Emerging Applications
4.1 Deep-Sea Design and Oil & Gas Equipments
Among the most requiring applications of HGMs is in syntactic foams for deep-ocean buoyancy modules, where they are installed in epoxy or plastic ester matrices to create compounds that stand up to severe hydrostatic stress.
These materials keep positive buoyancy at depths going beyond 6,000 meters, enabling autonomous underwater cars (AUVs), subsea sensors, and overseas drilling equipment to operate without hefty flotation protection tanks.
In oil well sealing, HGMs are contributed to seal slurries to lower thickness and protect against fracturing of weak formations, while also enhancing thermal insulation in high-temperature wells.
Their chemical inertness makes sure long-lasting security in saline and acidic downhole settings.
4.2 Aerospace, Automotive, and Lasting Technologies
In aerospace, HGMs are used in radar domes, indoor panels, and satellite parts to reduce weight without sacrificing dimensional security.
Automotive suppliers incorporate them into body panels, underbody finishes, and battery enclosures for electrical lorries to boost energy performance and minimize exhausts.
Arising uses consist of 3D printing of lightweight structures, where HGM-filled materials make it possible for complicated, low-mass elements for drones and robotics.
In sustainable construction, HGMs boost the insulating properties of light-weight concrete and plasters, adding to energy-efficient structures.
Recycled HGMs from industrial waste streams are also being checked out to improve the sustainability of composite products.
Hollow glass microspheres exhibit the power of microstructural design to transform bulk product homes.
By integrating low density, thermal stability, and processability, they enable technologies across aquatic, power, transport, and environmental sectors.
As material science developments, HGMs will remain to play an important duty in the growth of high-performance, light-weight products for future modern technologies.
